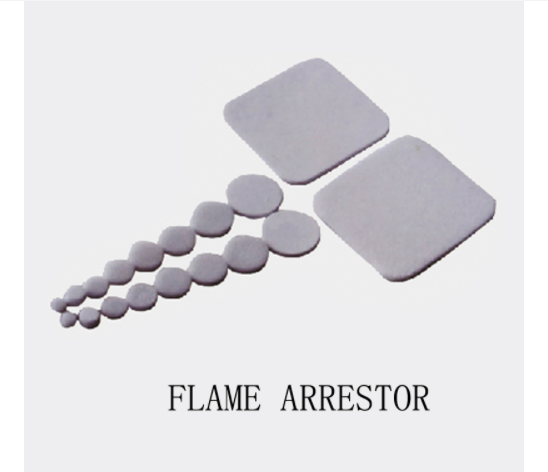

FLAME ARRESTOR
We own the independent intellectual property rights over the polyethylene and polypropylene micro-pore made by us these products are widely used in water purification and filtration,sewage treatment,medical treatment and public health,air filtration,storage batteries,chemical products,agriculture and daily necessities.
Product Features:
This product is prepared based on the air floating semi-melt mould pressing method under the real-time control of a microcomputer,in combination with power semi-melt control technique under air floating state,control technique of porous membrane product conformance,and control technique of porosity changes in a gradient form along the thick direction during micro-pore molding.
This product is characterized by excellent resistance to flame,acid fog,acid and alkali,prevent the electrolyte corrosion to the car and the surrounding environment.
The minimum pore size of product can be 50-150um with high porosity.
It is very excellent in ventilation performance and filtration of acid fog and waste gas.In addition,its water repellent and hydrophobic nature outdistance the like products(made in Europe and America) in existing market.
This product is remarkable in its mechanical strength and even in the conformance of dimension scale,and has good acid resistance and bearing capacity,which can rival like products in foreign markets.
Our micro-pore polyethylene and polypropylene can be designed subject to the requirements of users on the product,and can be made into series such as polypropylene and polyethylene compounded micro-pore filter element,and PTFE disc and films.
Flame Arrestor(diameter*thickness,mm)
NO. (PP) | SIZE | NO. (PP) | SIZE | NO. (PP) | SIZE | NO. (PP) | SIZE |
1 | 2.5*1.3 | 27 | 11.5*4 | 53 | 15.8*2.5 | 79 | 19.2*4 |
2 | 2.5*2 | 28 | 11.7*3 | 54 | 16*2.65 | 80 | 19.3*3 |
3 | 4*3 | 29 | 11.8*3 | 55 | 16*3.5 | 81 | 19.3*3.8 |
4 | 4.45*6.15 | 30 | 11.9*3 | 56 | 16*4 | 82 | 19.4*3 |
5 | 5*3.5 | 31 | 12*3 | 57 | 16*10.2*3 | 83 | 19.45*4.2 |
6 | 5.5*4 | 32 | 12*3.2 | 58 | 16.1*3.6 | 84 | 19.5*2.99 |
7 | 5.5*6 | 33 | 12*4 | 59 | 16.2*3.5 | 85 | 19.5*3 |
8 | 6*3 | 34 | 12.2*3 | 60 | 16.2*3.6 | 86 | 19.5*4 |
9 | 6*3.5 | 35 | 12.4*3 | 61 | 16.3*2.65 | 87 | 19.8*2.8 |
10 | 6.2*4.3*7.2 | 36 | 12.5*2.5 | 62 | 16.3*4 | 88 | 20*2 |
11 | 7*2.3 | 37 | 12.5*3 | 63 | 16.3*3.7 | 89 | 20*3.2 |
12 | 7*3 | 38 | 12.5*3.5 | 64 | 16.4*4 | 90 | 20*4.5 |
13 | 7.8*1.5 | 39 | 12.4*3 | 65 | 17*2.8 | 91 | 20.5*2.5 |
14 | 8*3.2 | 40 | 12.6*3.18 | 66 | 17.2*2.7 | 92 | 20.55*3.3 |
15 | 8*4.5 | 41 | 12.7*4 | 67 | 17.3*2.8 | 93 | 21.3*3.2 |
16 | 8.1*4.5 | 42 | 12.8*3 | 68 | 17.3*3 | 94 | 22*3.2 |
17 | 8.2*4.5 | 43 | 13*3 | 69 | 17.5*2.5 | 95 | 23.2*3.1 |
18 | 9.6*9.5 | 44 | 14.1*3 | 70 | 17.5*2.8 | 96 | 25.4*4 |
19 | 10*3 | 45 | 14.3*3 | 71 | 17.6*4 | 97 | 26.3*11.4*5.7*2 |
20 | 10*3.8 | 46 | 14.3*3.4 | 72 | 18*2 | 98 | 27.6*2.9 |
21 | 10.2*3.06 | 47 | 14.5*2 | 73 | 18*3 | 99 | 29*2.2 |
22 | 10.2*3.18 | 48 | 14.5*3.09 | 74 | 18*3.1 | 100 | 46*27*31 |
23 | 10.2*3.5 | 49 | 14.5*3.4 | 75 | 18.2*3.8 | 101 | 54*34*32 |
24 | 11.1*4 | 50 | 14.5*3.8 | 76 | 18.3*3 | ||
25 | 11.5*3 | 51 | 15*4 | 77 | 19.1*3 | ||
26 | 11.5*3.1 | 52 | 15.6*3.6 | 78 | 19.2*3 |
Flame Arrestor(diameter*thickness,mm)
NO. (PE) | SIZE | NO. (PE) | SIZE | NO. (PP+PE) | SIZE | NO. (PP+PE) | SIZE |
1 | 2.5*0.8 | 23 | 15*2 | 1 | 6*3.5 | 23 | 16.2*3.8 |
2 | 4.2*0.8 | 24 | 15*3 | 2 | 6*6.25 | 24 | 16.3*3.8 |
3 | 4.5*3.1 | 25 | 16.1*3.7 | 3 | 8*3.2 | 25 | 16.4*4 |
4 | 6*3.5 | 26 | 16.3*3.8 | 4 | 8.2*8.1*4.5 | 26 | 17*2.8 |
5 | 8.5*5 | 27 | 16.4*4 | 5 | 10*2 | 27 | 17.3*2.8 |
6 | 8.3*7.8*4.5 | 28 | 16.2*3.5 | 6 | 10*3 | 28 | 17.3*3 |
7 | 8.7*8.2*4.5 | 29 | 18*3 | 7 | 11.1*4 | 29 | 17.5*2.5 |
8 | 9*8.5*5.5 | 30 | 18.1*1.8 | 8 | 11.5*3 | 30 | 17.6*2.8 |
9 | 9.3*8.8*4.5 | 31 | 19.3*2.5 | 9 | 11.9*3 | 31 | 18.3*3.2 |
10 | 10*1.5 | 32 | 19.46*2.99 | 10 | 12*3 | 32 | 19.2*3.8 |
11 | 11*2.7 | 33 | 19.5*3 | 11 | 12.5*3.5 | 33 | 19.2*4 |
12 | 11.8*3 | 34 | 20*2 | 12 | 12.5*3.8 | 34 | 19.3*3 |
13 | 12*4 | 35 | 20*4 | 13 | 12.6*3 | 35 | 19.3*3.8 |
14 | 12*4.5 | 36 | 20*3 | 14 | 12.8*3.2 | 36 | 19.4*3 |
15 | 12.6*3 | 37 | 21*3 | 15 | 13*3 | 37 | 19.8*2.8 |
16 | 12.7*3.2 | 38 | 22*3.2 | 16 | 14.3*3 | 38 | 19.8*3.2 |
17 | 12.9*3 | 39 | 22.7*2 | 17 | 14.5*3 | 39 | 20.2*3.3 |
18 | 13*3 | 18 | 14.5*3.09 | 40 | 20.5*2.5 | ||
19 | 14.3*3 | 19 | 14.5*3.4 | 41 | 23*13.3 | ||
20 | 14.6*3 | 20 | 14.5*3.8 | 42 | 23.2*3.1 | ||
21 | 14.6*3.09 | 21 | 15.2*3.2 | 43 | 35.5*3.5 | ||
22 | 15*0.7 | 22 | 16.1*3.7 |
