Safety Valve

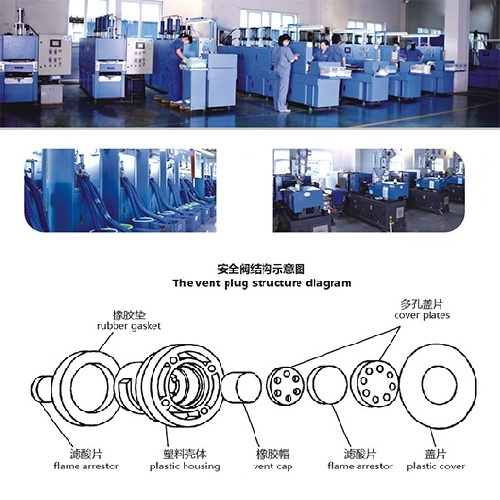

The safety valve for VRLA battery designed by us is based on foreign technology, increased process technology of rupture disc and flame arrestor, which filter the gas discharged from vent valve and prevents open flame into the battery vent plug. Improved the acid-resistance, anti-knock quality, water loss and conformance of battery vent plug, thereby extending the service life of the battery. We own the patent over the safety valve for VRLA battery. Our models are various and can be customized according to your requirements.
Detailed features:
1. The raw materials from all over the world are select elaborately. All indexes are strictly tested by IQC to ensure the quality of each batch of raw materials.
2. All components are separately manufactured by us. The strict selection of quality inspectors ensures the excellent quality of products before and after battery vent valve assembly.
3. The opening and closing pressure of safety vent plug can be designed upon the customer’s request.
4. All assembled vent plugs are strictly checked by OQC to ensure the quality of products delivered.
HD-1 总高度Total height:24 阀盖直径Bonnet diameter:/ 沿口直径Push-in diameter:34 阀柱直径Valve cylinder diameter:23.9 卡口直径Bayonet diameter:26.2 沿口厚度Push-in thickness:5 | HD-2 总高度Total height:27 阀盖直径Bonnet diameter:35.7 沿口直径Push-in diameter:34 阀柱直径Valve cylinder diameter:23 卡口直径Bayonet diameter:26.2 沿口厚度Push-in thickness:5 |
HD-3 总高度Total height:31 阀盖直径Bonnet diameter:38 沿口直径Push-in diameter:38 阀柱直径Valve cylinder diameter:23 卡口直径Bayonet diameter:26 沿口厚度Push-in thickness:10 | HD-4 总高度Total height:25.3 阀盖直径Bonnet diameter:/ 沿口直径Push-in diameter:30 阀柱直径Valve cylinder diameter:23.5 卡口直径Bayonet diameter:M22×2 沿口厚度Push-in thickness:8.5 |
HD-5 总高度Total height:16.5 阀盖直径Bonnet diameter:12.5 沿口直径Push-in diameter:/ 阀柱直径Valve cylinder diameter:M8*1.2 卡口直径Bayonet diameter:/ 沿口厚度Push-in thickness:2 | HD-6 总高度Total height:34.5 阀盖直径Bonnet diameter:40 沿口直径Push-in diameter:35 阀柱直径Valve cylinder diameter:20.2 卡口直径Bayonet diameter:25 沿口厚度Push-in thickness:10 |
HD-7 总高度Total height:34 阀盖直径Bonnet diameter:40 沿口直径Push-in diameter:35 阀柱直径Valve cylinder diameter:20.2 卡口直径Bayonet diameter:25 沿口厚度Push-in thickness:10 | HD-8 总高度Total height:34 阀盖直径Bonnet diameter:40 沿口直径Push-in diameter:34.2 阀柱直径Valve cylinder diameter:M24×3 卡口直径Bayonet diameter:/ 沿口厚度Push-in thickness:6 |
HD-9 总高度Total height:33.5 阀盖直径Bonnet diameter:33.4 沿口直径Push-in diameter:33.4 阀柱直径Valve cylinder diameter:M23.3×3 卡口直径Bayonet diameter:/ 沿口厚度Push-in thickness:7 | HD-10 总高度Total height:36 阀盖直径Bonnet diameter:33 沿口直径Push-in diameter:33 阀柱直径Valve cylinder diameter:20 卡口直径Bayonet diameter:24.5 沿口厚度Push-in thickness:7 |
HD-11 总高度Total height:25 阀盖直径Bonnet diameter:/ 沿口直径Push-in diameter:34.2 阀柱直径Valve cylinder diameter:20.3 卡口直径Bayonet diameter:24 沿口厚度Push-in thickness:4.5 | HD-12 总高度Total height:27.5 阀盖直径Bonnet diameter:40 沿口直径Push-in diameter:38 阀柱直径Valve cylinder diameter:22.5 卡口直径Bayonet diameter:28.5 沿口厚度Push-in thickness:4.5 |
HD-13 总高度Total height:41 阀盖直径Bonnet diameter:38 沿口直径Push-in diameter:35 阀柱直径Valve cylinder diameter:20.2 卡口直径Bayonet diameter:25.5 沿口厚度Push-in thickness:6
| HD-14 总高度Total height:42 阀盖直径Bonnet diameter:43 沿口直径Push-in diameter:34 阀柱直径Valve cylinder diameter:20.6 卡口直径Bayonet diameter:25 沿口厚度Push-in thickness:12 |
HD-15 总高度Total height:47 阀盖直径Bonnet diameter:35 沿口直径Push-in diameter:34 阀柱直径Valve cylinder diameter:20 卡口直径Bayonet diameter:25 沿口厚度Push-in thickness:13 | HD-16 总高度Total height:40 阀盖直径Bonnet diameter:34 沿口直径Push-in diameter:33 阀柱直径Valve cylinder diameter:20 卡口直径Bayonet diameter:24.5 沿口厚度Push-in thickness:7 |
HD-17 总高度Total height:30.5 阀盖直径Bonnet diameter:41 沿口直径Push-in diameter:38 阀柱直径Valve cylinder diameter:24 卡口直径Bayonet diameter:/ 沿口厚度Push-in thickness:19.5 | HD-18 总高度Total height:24 阀盖直径Bonnet diameter:/ 沿口直径Push-in diameter:31.4 阀柱直径Valve cylinder diameter:20 卡口直径Bayonet diameter:24 沿口厚度Push-in thickness:4.5 |
HD-19 总高度Total height:21 阀盖直径Bonnet diameter:/ 沿口直径Push-in diameter:24 阀柱直径Valve cylinder diameter:18 卡口直径Bayonet diameter:21 沿口厚度Push-in thickness:5 | HD-20 总高度Total height:23 阀盖直径Bonnet diameter:28 沿口直径Push-in diameter:/ 阀柱直径Valve cylinder diameter:8.5 卡口直径Bayonet diameter:11.6 沿口厚度Push-in thickness:13 |
HD-21 总高度Total height:22.5 阀盖直径Bonnet diameter:/ 沿口直径Push-in diameter:24 阀柱直径Valve cylinder diameter:18 卡口直径Bayonet diameter:26 沿口厚度Push-in thickness:6 | HD-22 总高度Total height:17 阀盖直径Bonnet diameter:22 沿口直径Push-in diameter:/ 阀柱直径Valve cylinder diameter:M18×2.5 卡口直径Bayonet diameter:/ 沿口厚度Push-in thickness:5.2 |
HD-23 总高度Total height:22.5 阀盖直径Bonnet diameter:/ 沿口直径Push-in diameter:34.2 阀柱直径Valve cylinder diameter:20.3 卡口直径Bayonet diameter:24 沿口厚度Push-in thickness:4.5 | HD-24 总高度Total height:22 阀盖直径Bonnet diameter:/ 沿口直径Push-in diameter:34 阀柱直径Valve cylinder diameter:M30×2.5 卡口直径Bayonet diameter:/ 沿口厚度Push-in thickness:6.5 |
HD-25 总高度Total height:29 阀盖直径Bonnet diameter:28.5 沿口直径Push-in diameter:28.5 阀柱直径Valve cylinder diameter:M20×2.5 卡口直径Bayonet diameter:/ 沿口厚度Push-in thickness:6 | HD-26 总高度Total height:29 阀盖直径Bonnet diameter:28.5 沿口直径Push-in diameter:28.5 阀柱直径Valve cylinder diameter:M20×2.5 卡口直径Bayonet diameter:/ 沿口厚度Push-in thickness:5 |
HD-27 总高度Total height:26 阀盖直径Bonnet diameter:37 沿口直径Push-in diameter:/ 阀柱直径Valve cylinder diameter:23.5 卡口直径Bayonet diameter:28.5 沿口厚度Push-in thickness:14.5
| HD-28 总高度Total height:22.5 阀盖直径Bonnet diameter:18 沿口直径Push-in diameter:/ 阀柱直径Valve cylinder diameter:M12×2 卡口直径Bayonet diameter:/ 沿口厚度Push-in thickness:10.4 |
HD-29 总高度Total height:20.8 阀盖直径Bonnet diameter:18 沿口直径Push-in diameter:/ 阀柱直径Valve cylinder diameter:M12×2 卡口直径Bayonet diameter:/ 沿口厚度Push-in thickness:8.8 | HD-30 总高度Total height:30 阀盖直径Bonnet diameter:38.5 沿口直径Push-in diameter:36 阀柱直径Valve cylinder diameter:23.5 卡口直径Bayonet diameter:29.2 沿口厚度Push-in thickness:6 |
HD-31 总高度Total height:30.5 阀盖直径Bonnet diameter:41 沿口直径Push-in diameter:38 阀柱直径Valve cylinder diameter:24 卡口直径Bayonet diameter:29 沿口厚度Push-in thickness:12.5 | HD-32 总高度Total height:39 阀盖直径Bonnet diameter:40 沿口直径Push-in diameter:/ 阀柱直径Valve cylinder diameter:M23×2 卡口直径Bayonet diameter:/ 沿口厚度Push-in thickness:/ |
HD-33 总高度Total height:31 阀盖直径Bonnet diameter:38 沿口直径Push-in diameter:36 阀柱直径Valve cylinder diameter:23.5 卡口直径Bayonet diameter:29.5 沿口厚度Push-in thickness:8 | HD-34 总高度Total height:31 阀盖直径Bonnet diameter:40 沿口直径Push-in diameter:33.5 阀柱直径Valve cylinder diameter:20.3 卡口直径Bayonet diameter:24.5 沿口厚度Push-in thickness:10.2 |
HD-35 总高度Total height:29 阀盖直径Bonnet diameter:33.5 沿口直径Push-in diameter:31 阀柱直径Valve cylinder diameter:M24×2 卡口直径Bayonet diameter:/ 沿口厚度Push-in thickness:5 | HD-36 总高度Total height:25 阀盖直径Bonnet diameter:33.5 沿口直径Push-in diameter:21 阀柱直径Valve cylinder diameter:M24×1.5 卡口直径Bayonet diameter:/ 沿口厚度Push-in thickness:5 |
HD-37 总高度Total height:27 阀盖直径Bonnet diameter:/ 沿口直径Push-in diameter:26 阀柱直径Valve cylinder diameter:18 卡口直径Bayonet diameter:21 沿口厚度Push-in thickness:5 | HD-38 总高度Total height:27 阀盖直径Bonnet diameter:/ 沿口直径Push-in diameter:25 阀柱直径Valve cylinder diameter:M16×2.5 卡口直径Bayonet diameter:/ 沿口厚度Push-in thickness:5 |
HD-39 总高度Total height:113.3 阀盖直径Bonnet diameter:42 沿口直径Push-in diameter:/ 阀柱直径Valve cylinder diameter:24 卡口直径Bayonet diameter:29 沿口厚度Push-in thickness:32 | HD-40 总高度Total height:175 阀盖直径Bonnet diameter:48 沿口直径Push-in diameter:/ 阀柱直径Valve cylinder diameter:24.5 卡口直径Bayonet diameter:29 沿口厚度Push-in thickness:35 |
HD-41 总高度Total height:135 阀盖直径Bonnet diameter:39 沿口直径Push-in diameter:/ 阀柱直径Valve cylinder diameter:24 卡口直径Bayonet diameter:29 沿口厚度Push-in thickness:34
| HD-42 总高度Total height:56 阀盖直径Bonnet diameter:/ 沿口直径Push-in diameter:33 阀柱直径Valve cylinder diameter:/ 卡口直径Bayonet diameter:18 沿口厚度Push-in thickness:/ |
HD-43 总高度Total height:39 阀盖直径Bonnet diameter:/ 沿口直径Push-in diameter:38 阀柱直径Valve cylinder diameter:24 卡口直径Bayonet diameter:30 沿口厚度Push-in thickness:/ | HD-44 总高度Total height:39 阀盖直径Bonnet diameter:/ 沿口直径Push-in diameter:35 阀柱直径Valve cylinder diameter:20 卡口直径Bayonet diameter:26 沿口厚度Push-in thickness:/ |
HD-45 总高度Total height:19 阀盖直径Bonnet diameter:/ 沿口直径Push-in diameter:38 阀柱直径Valve cylinder diameter:/ 卡口直径Bayonet diameter:29.8 沿口厚度Push-in thickness:/ | HD-46 总高度Total height:24 阀盖直径Bonnet diameter:/ 沿口直径Push-in diameter:20 阀柱直径Valve cylinder diameter:/ 卡口直径Bayonet diameter:/ 沿口厚度Push-in thickness:/ |
HD-47 总高度Total height:20 阀盖直径Bonnet diameter:/ 沿口直径Push-in diameter:24 阀柱直径Valve cylinder diameter:M18×2.5 卡口直径Bayonet diameter:/ 沿口厚度Push-in thickness:/ | HD-48 总高度Total height:18.5 阀盖直径Bonnet diameter:/ 沿口直径Push-in diameter:24.5 阀柱直径Valve cylinder diameter:M17×2.5 卡口直径Bayonet diameter:/ 沿口厚度Push-in thickness:/ |
HD-49 总高度Total height:20 阀盖直径Bonnet diameter:26 沿口直径Push-in diameter:M18×2.5 阀柱直径Valve cylinder diameter:/ 卡口直径Bayonet diameter:/ 沿口厚度Push-in thickness:/ | HD-50 总高度Total height:25 阀盖直径Bonnet diameter:/ 沿口直径Push-in diameter:/ 阀柱直径Valve cylinder diameter:24 卡口直径Bayonet diameter:30 沿口厚度Push-in thickness:/ |
HD-51 总高度Total height:22 阀盖直径Bonnet diameter:/ 沿口直径Push-in diameter:20.5 阀柱直径Valve cylinder diameter:M24×1.5 卡口直径Bayonet diameter:/ 沿口厚度Push-in thickness:5.5 | HD-52 总高度Total height:32 阀盖直径Bonnet diameter:26.2 沿口直径Push-in diameter:26.3 阀柱直径Valve cylinder diameter:M21×3 卡口直径Bayonet diameter:/ 沿口厚度Push-in thickness:7 |
HD-53 总高度Total height:44.5 阀盖直径Bonnet diameter:/ 沿口直径Push-in diameter:41.3 阀柱直径Valve cylinder diameter:/ 卡口直径Bayonet diameter:36.3 沿口厚度Push-in thickness:/ | HD-54 总高度Total height:45/57/74 阀盖直径Bonnet diameter:/ 沿口直径Push-in diameter:/ 阀柱直径Valve cylinder diameter:/ 卡口直径Bayonet diameter:/ 沿口厚度Push-in thickness:/ |
HD-55 总高度Total height:52.5 阀盖直径Bonnet diameter:43.5 沿口直径Push-in diameter:41 阀柱直径Valve cylinder diameter:21 卡口直径Bayonet diameter:29 沿口厚度Push-in thickness:/
| HD-56 总高度Total height:33 阀盖直径Bonnet diameter:40 沿口直径Push-in diameter:34.5 阀柱直径Valve cylinder diameter:20 卡口直径Bayonet diameter:24 沿口厚度Push-in thickness:5 |
HD-57 总高度Total height:35 阀盖直径Bonnet diameter:/ 沿口直径Push-in diameter:35.8 阀柱直径Valve cylinder diameter:23×1.8 卡口直径Bayonet diameter:/ 沿口厚度Push-in thickness:3 | HD-58 总高度Total height:17.8 阀盖直径Bonnet diameter:/ 沿口直径Push-in diameter:35 阀柱直径Valve cylinder diameter:20 卡口直径Bayonet diameter:24 沿口厚度Push-in thickness:6.4 |
HD-59 总高度Total height:33.5 阀盖直径Bonnet diameter:33 沿口直径Push-in diameter:/ 阀柱直径Valve cylinder diameter:18.5 卡口直径Bayonet diameter:19.5 沿口厚度Push-in thickness:7 | HD-60 总高度Total height:31.5 阀盖直径Bonnet diameter:42.1 沿口直径Push-in diameter:/ 阀柱直径Valve cylinder diameter:33.8 卡口直径Bayonet diameter:37.5 沿口厚度Push-in thickness:36.5 |
HD-61 总高度Total height:135 阀盖直径Bonnet diameter:39 沿口直径Push-in diameter:41.2 阀柱直径Valve cylinder diameter:24 卡口直径Bayonet diameter:28.5 沿口厚度Push-in thickness:2 | HD-62 总高度Total height:38 阀盖直径Bonnet diameter:/ 沿口直径Push-in diameter:30 阀柱直径Valve cylinder diameter:25 卡口直径Bayonet diameter:/ 沿口厚度Push-in thickness:/ |
HD-63 总高度Total height:29.7 阀盖直径Bonnet diameter:/ 沿口直径Push-in diameter:37.1 阀柱直径Valve cylinder diameter:23.5 卡口直径Bayonet diameter:28.5 沿口厚度Push-in thickness:12.3 | HD-64 总高度Total height:30.2 阀盖直径Bonnet diameter:/ 沿口直径Push-in diameter:40 阀柱直径Valve cylinder diameter:M24 卡口直径Bayonet diameter:/ 沿口厚度Push-in thickness:7 |
HD-65 总高度Total height:32 阀盖直径Bonnet diameter:39.5 沿口直径Push-in diameter:35.8 阀柱直径Valve cylinder diameter:23.5 卡口直径Bayonet diameter:30 沿口厚度Push-in thickness:3 | HD-66 总高度Total height:20.5 阀盖直径Bonnet diameter:/ 沿口直径Push-in diameter:36.5 阀柱直径Valve cylinder diameter:23.4 卡口直径Bayonet diameter:29.7 沿口厚度Push-in thickness:6 |
HD-67 总高度Total height:24 阀盖直径Bonnet diameter:/ 沿口直径Push-in diameter:31.5 阀柱直径Valve cylinder diameter:23 卡口直径Bayonet diameter:26.5 沿口厚度Push-in thickness:/ | HD-68 总高度Total height:36.3 阀盖直径Bonnet diameter:39.6 沿口直径Push-in diameter:36.5 阀柱直径Valve cylinder diameter:23.5 卡口直径Bayonet diameter:29.5 沿口厚度Push-in thickness:17.1 |
HD-69 总高度Total height:39 阀盖直径Bonnet diameter:38 沿口直径Push-in diameter:38 阀柱直径Valve cylinder diameter:23 卡口直径Bayonet diameter:26 沿口厚度Push-in thickness:10
| HD-70 总高度Total height:56.5 阀盖直径Bonnet diameter:47.4 沿口直径Push-in diameter:47.6 阀柱直径Valve cylinder diameter:24 卡口直径Bayonet diameter:28 沿口厚度Push-in thickness:5 |
HD-71 总高度Total height:34 阀盖直径Bonnet diameter:40 沿口直径Push-in diameter:35 阀柱直径Valve cylinder diameter:20.2 卡口直径Bayonet diameter:25 沿口厚度Push-in thickness:10 | HD-72 总高度Total height:114 阀盖直径Bonnet diameter:/ 沿口直径Push-in diameter:/ 阀柱直径Valve cylinder diameter:M29×4 卡口直径Bayonet diameter:/ 沿口厚度Push-in thickness:/ |
HD-73 总高度Total height:22.4 阀盖直径Bonnet diameter:/ 沿口直径Push-in diameter:26 阀柱直径Valve cylinder diameter:18 卡口直径Bayonet diameter:21 沿口厚度Push-in thickness:5 | HD-74 总高度Total height:17 阀盖直径Bonnet diameter:/ 沿口直径Push-in diameter:22 阀柱直径Valve cylinder diameter:M18×2.5 卡口直径Bayonet diameter:/ 沿口厚度Push-in thickness:5.2 |
HD-75 总高度Total height:30 阀盖直径Bonnet diameter:/ 沿口直径Push-in diameter:33.5 阀柱直径Valve cylinder diameter:M22×3 卡口直径Bayonet diameter:/ 沿口厚度Push-in thickness:7.1 | HD-76 总高度Total height:26 阀盖直径Bonnet diameter:37 沿口直径Push-in diameter:/ 阀柱直径Valve cylinder diameter:23.5 卡口直径Bayonet diameter:28.5 沿口厚度Push-in thickness:14.5 |
HD-77 总高度Total height:20 阀盖直径Bonnet diameter:/ 沿口直径Push-in diameter:35 阀柱直径Valve cylinder diameter:24 卡口直径Bayonet diameter:29 沿口厚度Push-in thickness:10 | HD-78 总高度Total height:30.5 阀盖直径Bonnet diameter:41 沿口直径Push-in diameter:38 阀柱直径Valve cylinder diameter:24 卡口直径Bayonet diameter:28.5 沿口厚度Push-in thickness:19.5 |
HD-79 总高度Total height:23.7 阀盖直径Bonnet diameter:33 沿口直径Push-in diameter:48 阀柱直径Valve cylinder diameter:M30×3.5 卡口直径Bayonet diameter:/ 沿口厚度Push-in thickness:3 | HD-80 总高度Total height:27.8 阀盖直径Bonnet diameter:/ 沿口直径Push-in diameter25 阀柱直径Valve cylinder diameter:M18×2.5 上包胶Top sealing diameter:ɸ22.1/20.3 下包胶Bottom sealing diameter:ɸ19.24/19.05 沿口厚度Push-in thickness:2.5 |
HD-81 总高度Total height:25 阀盖直径Bonnet diameter:/ 沿口直径Push-in diameter:24 阀柱直径Valve cylinder diameter:M18×2.5 卡口直径Bayonet diameter:/ 沿口厚度Push-in thickness:2 | HD-82 总高度Total height:28 阀盖直径Bonnet diameter:/ 沿口直径Push-in diameter:26 上包胶沿口厚度Push-in thickness:6 |
HD-83 总高度Total height:32 阀盖直径Bonnet diameter:/ 沿口直径Push-in diameter:34.8 阀柱直径Valve cylinder diameter:M28×3.5 卡口直径Bayonet diameter:/ 沿口厚度Push-in thickness:2 | HD-84 总高度Total height:28 阀盖直径Bonnet diameter:/ 沿口直径Push-in diameter:36 阀柱直径Valve cylinder diameter:22.5 卡口直径Bayonet diameter:29 沿口厚度Push-in thickness:14.7 |
HD-85 总高度Total height:40 阀盖直径Bonnet diameter:/ 沿口直径Push-in diameter:38 阀柱直径Valve cylinder diameter:24 卡口直径Bayonet diameter:29.8 沿口厚度Push-in thickness:3 | HD-86 总高度Total height:34.5 阀盖直径Bonnet diameter:35.7 沿口直径Push-in diameter:34 阀柱直径Valve cylinder diameter:23 卡口直径Bayonet diameter:26.2 沿口厚度Push-in thickness:5 |
HD-87 总高度Total height:37 阀盖直径Bonnet diameter:/ 沿口直径Push-in diameter:37.5 阀柱直径Valve cylinder diameter:22 卡口直径Bayonet diameter:29 沿口厚度Push-in thickness:3 | HD-88 总高度Total height:41 阀盖直径Bonnet diameter:38 沿口直径Push-in diameter:35 阀柱直径Valve cylinder diameter:20.2 卡口直径Bayonet diameter:25.5 沿口厚度Push-in thickness:6 |
HD-89 总高度Total height:36.5 阀盖直径Bonnet diameter:37 沿口直径Push-in diameter:40 阀柱直径Valve cylinder diameter:23.8 卡口直径Bayonet diameter:30 沿口厚度Push-in thickness:2.5 | HD-90 总高度Total height:21 阀盖直径Bonnet diameter:/ 沿口直径Push-in diameter:24 阀柱直径Valve cylinder diameter:18 卡口直径Bayonet diameter:21 沿口厚度Push-in thickness:5 |
HD-91 总高度Total height:72 阀盖直径Bonnet diameter:/ 沿口直径Push-in diameter:44 阀柱直径Valve cylinder diameter:/ 卡口直径Bayonet diameter:29.3 沿口厚度Push-in thickness:13 | HD-92（HD-306） 总高度Total height:74.75 阀盖直径Bonnet diameter:/ 沿口直径Push-in diameter:41 阀柱直径Valve cylinder diameter:/ 卡口直径Bayonet diameter:36 沿口厚度Push-in thickness:15.3 |
HD-93 总高度Total height:20.5 阀盖直径Bonnet diameter:/ 沿口直径Push-in diameter:36.5 阀柱直径Valve cylinder diameter:23.4 卡口直径Bayonet diameter:29.7 沿口厚度Push-in thickness:6 | HD-94 总高度Total height:21.7 阀盖直径Bonnet diameter:/ 沿口直径Push-in diameter:26 阀柱直径Valve cylinder diameter:17 卡口直径Bayonet diameter:20.89 沿口厚度Push-in thickness:2.2 |
HD-95 总高度Total height:36 阀盖直径Bonnet diameter:41.5 沿口直径Push-in diameter:37 阀柱直径Valve cylinder diameter:24.2 卡口直径Bayonet diameter:29.6 沿口厚度Push-in thickness:12.7 | HD-96 总高度Total height:21 阀盖直径Bonnet diameter:/ 沿口直径Push-in diameter:33.1 阀柱直径Valve cylinder diameter:M30*2.5 卡口直径Bayonet diameter:/ 沿口厚度Push-in thickness:5.5 |
HD-97 总高度Total height:22.4 阀盖直径Bonnet diameter:/ 沿口直径Push-in diameter:26 阀柱直径Valve cylinder diameter:18 卡口直径Bayonet diameter:21 沿口厚度Push-in thickness:2.1 | HD-98 总高度Total height:24 阀盖直径Bonnet diameter:/ 上硬胶Plastic housing tap diameter:ɸ25.8 中硬胶Plastic housing middle diameter:ɸ20 下硬胶Plastic housing bottom diameter:ɸ18 阀柱直径Valve cylinder diameter:M18*2.5 上软胶Top sealing diameter:ɸ25.8 下软胶Bottom sealing diameter:ɸ21 防反转Anti-reverse diameter:ɸ26.4 沿口厚度Push-in thickness:4 |
HD-99 总高度Total height:39.42 阀盖直径Bonnet diameter:38 沿口直径Push-in diameter:38 阀柱直径Valve cylinder diameter:23 卡口直径Bayonet diameter:26 沿口厚度Push-in thickness:10 | HD-100 总高度Total height:74.75 阀盖直径Bonnet diameter:/ 沿口直径Push-in diameter:41 阀柱直径Valve cylinder diameter:/ 卡口直径Bayonet diameter:36 沿口厚度Push-in thickness:15.3 |
HD-300 总高度Total height:25 阀盖直径Bonnet diameter:/ 沿口直径Push-in diameter:34.2 阀柱直径Valve cylinder diameter:20.3 卡口直径Bayonet diameter:24 沿口厚度Push-in thickness:4.5 | HD-301 总高度Total height:26.2 阀盖直径Bonnet diameter:/ 上硬胶Plastic housing tap diameter:ɸ25.8 中硬胶Plastic housing middle diameter:ɸ19 下硬胶Plastic housing bottom diameter:ɸ18 阀柱直径Valve cylinder diameter:M18*2.5 上软胶Top sealing diameter:ɸ26.3 下软胶Bottom sealing diameter:ɸ20 沿口厚度Push-in thickness:5.1 |
HD-302 总高度Total height:37.9 阀盖直径Bonnet diameter:39.6 沿口直径Push-in diameter:39.6 阀柱直径Valve cylinder diameter:23 卡口直径Bayonet diameter:29 沿口厚度Push-in thickness:3.4 | HD-303 总高度Total height:22.4 阀盖直径Bonnet diameter:/ 沿口直径Push-in diameter:26 阀柱直径Valve cylinder diameter:18 卡口直径Bayonet diameter:21 沿口厚度Push-in thickness:2.5 |
HD-304 总高度Total height:74.75 阀盖直径Bonnet diameter:/ 沿口直径Push-in diameter:41 阀柱直径Valve cylinder diameter:/ 卡口直径Bayonet diameter:36 沿口厚度Push-in thickness:15.3 | HD-305 总高度Total height:110/84 阀盖直径Bonnet diameter:/ 沿口直径Push-in diameter:34.5 阀柱直径Valve cylinder diameter:M28 卡口直径Bayonet diameter:/ 沿口厚度Push-in thickness:/ |
HD-307 总高度Total height:38 阀盖直径Bonnet diameter:33.5 沿口直径Push-in diameter:33 阀柱直径Valve cylinder diameter:20 卡口直径Bayonet diameter:24.5 沿口厚度Push-in thickness:7 | HD-308 总高度Total height:40.8 阀盖直径Bonnet diameter:/ 沿口直径Push-in diameter:24 阀柱直径Valve cylinder diameter:14 卡口直径Bayonet diameter:/ 沿口厚度Push-in thickness:2.95 |
HD-309 总高度Total height:27 阀盖直径Bonnet diameter:/ 沿口直径Push-in diameter:26 阀柱直径Valve cylinder diameter:18 卡口直径Bayonet diameter:21 沿口厚度Push-in thickness:6 | HD-310 总高度Total height:34 阀盖直径Bonnet diameter:40 沿口直径Push-in diameter:34.2 阀柱直径Valve cylinder diameter:M24*3 卡口直径Bayonet diameter:/ 沿口厚度Push-in thickness:6 |
HD-311 总高度Total height:20 阀盖直径Bonnet diameter:/ 沿口直径Push-in diameter:27 阀柱直径Valve cylinder diameter:18 卡口直径Bayonet diameter:20.4 沿口厚度Push-in thickness:5.5 | HD-312 总高度Total height:20.5 阀盖直径Bonnet diameter:29 沿口直径Push-in diameter:29 阀柱直径Valve cylinder diameter:M22*2.5 卡口直径Bayonet diameter:/ 沿口厚度Push-in thickness:3.5 |
HD-313 总高度Total height:27.55 阀盖直径Bonnet diameter:/ 沿口直径Push-in diameter:25 阀柱直径Valve cylinder diameter:M18*2.5 上软胶Top sealing diameter:ɸ19.9 下软胶Bottom sealing diameter:ɸ19 沿口厚度Push-in thickness:2.5 | HD-314 总高度Total height:21 阀盖直径Bonnet diameter:/ 沿口直径Push-in diameter:24 阀柱直径Valve cylinder diameter:18 卡口直径Bayonet diameter:21 沿口厚度Push-in thickness:5 |
HD-315 总高度Total height:41.5 阀盖直径Bonnet diameter:39.6 沿口直径Push-in diameter:39.6 阀柱直径Valve cylinder diameter:23 卡口直径Bayonet diameter:29.3 沿口厚度Push-in thickness:14.6 | HD-316 总高度Total height:19 阀盖直径Bonnet diameter:/ 沿口直径Push-in diameter:38 阀柱直径Valve cylinder diameter:/ 卡口直径Bayonet diameter:29.8 沿口厚度Push-in thickness:/ |
HD-317 总高度Total height:20.2 阀盖直径Bonnet diameter:/ 沿口直径Push-in diameter:26 阀柱直径Valve cylinder diameter:M18*2 卡口直径Bayonet diameter:/ 沿口厚度Push-in thickness:2.5 | HD-318 总高度Total height:34 阀盖直径Bonnet diameter:/ 沿口直径Push-in diameter:23.6 阀柱直径Valve cylinder diameter:15 上软胶Top sealing diameter:ɸ23.6 中软胶Middle sealing diameter:ɸ20.2 下软胶Bottom sealing diameter:ɸ16.7 沿口厚度Push-in thickness:15.3 |
HD-319 总高度Total height:74.75 阀盖直径Bonnet diameter:/ 沿口直径Push-in diameter:41 阀柱直径Valve cylinder diameter:/ 卡口直径Bayonet diameter:36 沿口厚度Push-in thickness:15.3 | HD-320 总高度Total height:27.55 阀盖直径Bonnet diameter:/ 沿口直径Push-in diameter:25 阀柱直径Valve cylinder diameter:M18*2.5 上软胶Top sealing diameter:ɸ26 下软胶Bottom sealing diameter:ɸ21 沿口厚度Push-in thickness:2 |
HD-321 总高度Total height:30.1 阀盖直径Bonnet diameter:24.3 沿口直径Push-in diameter:/ 阀柱直径Valve cylinder diameter:22 卡口直径Bayonet diameter:26.38 沿口厚度Push-in thickness:/ | HD-322 总高度Total height:19.8 阀盖直径Bonnet diameter:/ 沿口直径Push-in diameter:33 阀柱直径Valve cylinder diameter:M30*2.5 卡口直径Bayonet diameter:/ 沿口厚度Push-in thickness:5.5 |
HD-323 总高度Total height:110/84 阀盖直径Bonnet diameter:/ 沿口直径Push-in diameter:34.5 阀柱直径Valve cylinder diameter:M21*2.5 卡口直径Bayonet diameter:/ 沿口厚度Push-in thickness:/ | HD-324 总高度Total height:24 阀盖直径Bonnet diameter:/ 沿口直径Push-in diameter:21 阀柱直径Valve cylinder diameter:M16*2 卡口直径Bayonet diameter:/ 沿口厚度Push-in thickness:2 |
HD-325 总高度Total height:120 阀盖直径Bonnet diameter:/ 沿口直径Push-in diameter:53.5 阀柱直径Valve cylinder diameter:M30 卡口直径Bayonet diameter:/ 沿口厚度Push-in thickness:1.2 | HD-326 总高度Total height:21.7 阀盖直径Bonnet diameter:/ 沿口直径Push-in diameter:28.7 阀柱直径Valve cylinder diameter:M20*3 卡口直径Bayonet diameter:/ 沿口厚度Push-in thickness:3 |
HD-327 总高度Total height:25 阀盖直径Bonnet diameter:/ 沿口直径Push-in diameter:32 阀柱直径Valve cylinder diameter:18.4 卡口直径Bayonet diameter:25 沿口厚度Push-in thickness:5 | HD-328 总高度Total height:33.5 阀盖直径Bonnet diameter:/ 沿口直径Push-in diameter:25 阀柱直径Valve cylinder diameter:M18*2.5 上软胶Top sealing diameter:ɸ26 下软胶Bottom sealing diameter:ɸ21 沿口厚度Push-in thickness:2 |
