QLB Mobile Type Asphalt Batch Mixing Plant
Product Description

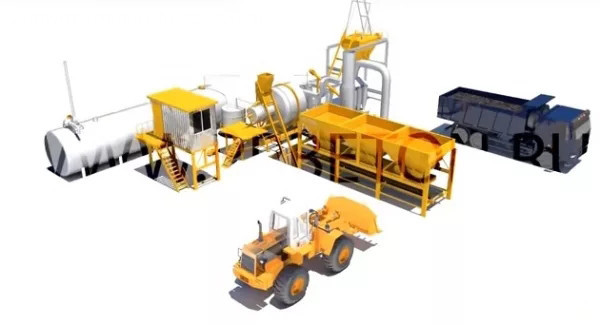

QLB series mobile asphalt plant is twin-shaft type asphalt equipment, with specific design of dryer drum and double shaft mixer, capacity range 10-80 ton per hour.It is belong to mobile force asphalt mixing plant.Its features as below:
1. The machine has module structure which combines intermittent drying roller and twin horizontal shaft mixer.
2. The high quality and stability of the asphalt produced by our machine can meet the requirements of the high-level black pavements in pavement building, reconstruction and maintainance.3. PLC control, touch screen with free auto/manual transfer are available for this kind of concrete mixing equipment.
4. Movable chassis structure allows a fast as well as easy transport and installation.
5. Coal and oil burner are available upon customer`s request.
Main Applications of Mobile Asphalt Batching Plant
This kind of asphalt mixing equipment is widely used for producing asphalts,
known as a type of industrial materials that do play an essential role in construction and maintenance work of asphalt roads.
Features
QLB series asphalt plant adopting modular design, easy for transportation, disassembly and installation.
QLB series asphalt plant easily expanded into mobile type, convenient for using in different working conditions.
The drum adopts gear drive, frequency conversion, positive and negative going motion, intermittent heating.
It`s double shaft mixing, batch production. Blade and lining board adopts high wear-resisting material, with long service life.
The standard configuration of QLB Mobile asphalt plant is cyclone filter. Optional: water dust filter or bag house collector.
The aggregate, bitumen and filler all adopt the batch-type metering, with high precision and reliable performance.
Control with PLC operation, with manual/automatic operation modes.
Technical Parameters of Asphalt Mixing Plant
Mobile Force Asphalt Mixing Plant | |||||||
Type | QLB-10 | QLB-15 | QLB-20 | QLB-30 | QLB-40 | QLB-60 | QLB-80 |
Capacity | 10t/h | 15t/h | 20t/h | 30t/h | 40t/h | 60t/h | 80t/h |
Power Diesel | 41.5kw | 54kw | 63.5kw | 104.5kw | 125kw | 157.5kw | 200kw |
Power Coal | 57.5kw | 75kw | 86.5kw | 127.5kw | 169kw | 205kw | 276kw |
Aggregate batcher | 2.3m3×3 | 2.3m3×3 | 5m3×3 | 5m3×3 | 5m3×4 | ||
Storage bin | 2t | 5t | 5t | 9t | 9t | 9t | 20t |
Product temperature | 120-180,adjustable | ||||||
Fuel consumption | Oil :5-7.5 kg/t | ||||||
Coal :13-15kg/t | |||||||
Optional | Coal miller , Wet filter, Bag House, Control room, Bitumen heating tank | ||||||

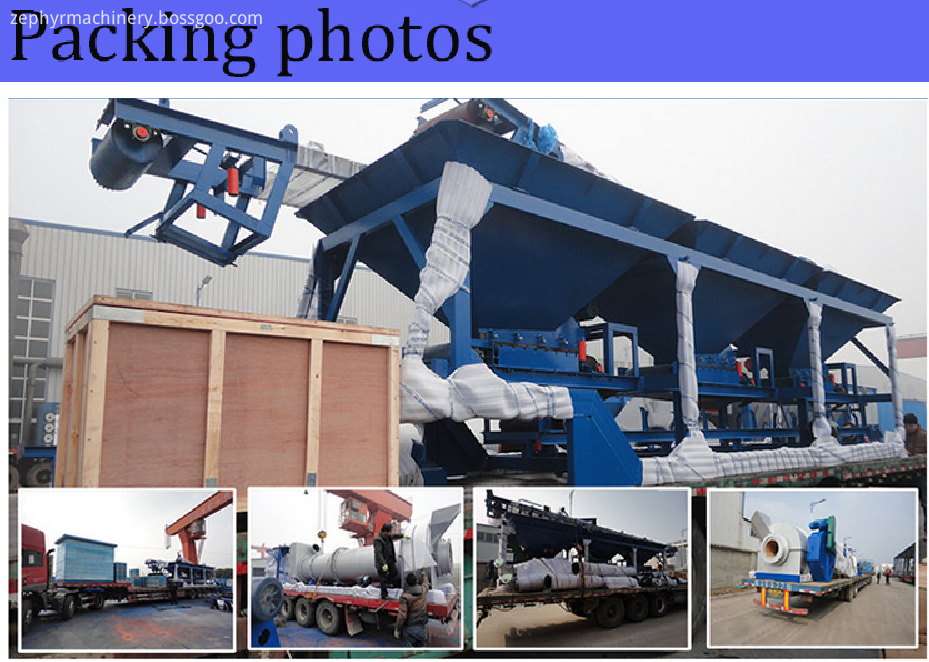

Package And Shipping
Our Service
1. Turn-Key Solutions
2. Erection & Commissioning Service
3. Operation Training Service
4. Spare Parts Supply (all working life)
Company information
Harbin Zephyr Trading Co.,Ltd locates in the north of China, province Heilongjiang,city Harbin.This is an international trading company mainly exports large road machinery such as:asphalt mixing plant,concrete mixing plant,crushing and screening production line and so on...If you need loader ,bulldozer,excavator etc construction machinery,please fell free to contact with us.
As one of the first professional supplier of asphalt mixing plant and concrete mixing plant in China,we have always given attention to maintaining our higher level quality control and service , and we have reveived the ISO9001,CE,SGS etc certificates.Our equipment has exported to35 countries,including:Russia,India,
Bangladesh,Ghana etc.
If you have any inquiry about the concrete mixing plant or constructions machinery,please fell free to contact us,We are always warmly welcome you to come and look forward to our meeting!
