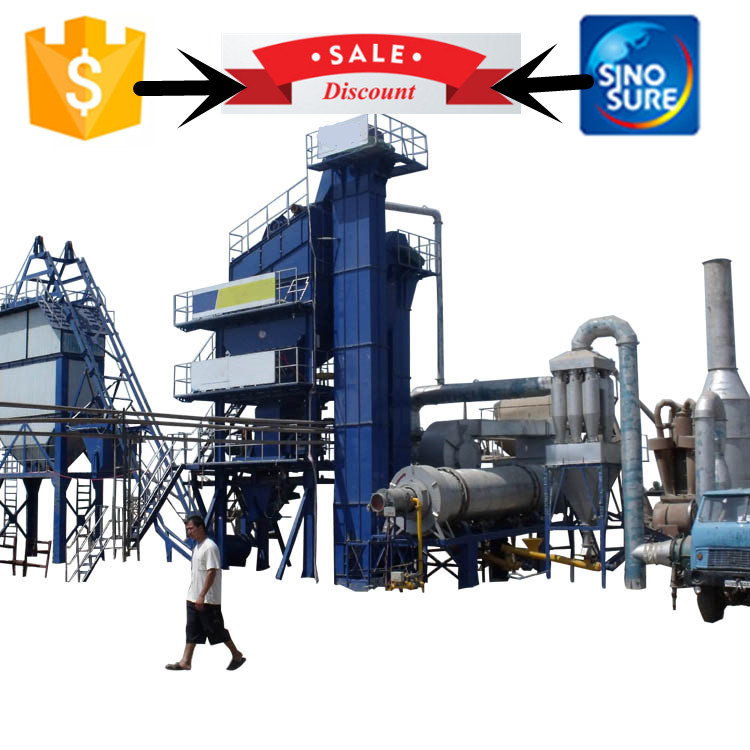

Recycling Asphalt Mixing Plant Cost Indonesia
Product Description
Asphalt Recycling Plant (RAP) will utilize and mix the heated wasted asphalt mixture together with new aggregates, new bitumen in a designed proportion to produce the finished mixture to meet technical requirements. It`ll not only eliminate wasted asphalt mixture`s pollution to the environment, but also recycle the wasted aggregates and bitumen which is maximum use of the limited resources to reduce expenses for customers.The Asphalt Mixing Plant is mainly composed of wasted mixture supply system, wasted mixture drying system, burning system, elevating system, dust filtering system, weighing system and electrical control system.It`s featured with module, reasonable and compact design, and combined with mixing plant smoothly.Recycled material adding proportion can reach 60%.
Advantages
• The drying drum adopt rake+chain anti-adhesion structure prevent the problem of adhesive aggregates
• The high temperature exhaust gas returned to dry drum through the flue to reuse, which can save energy while reducing the burden of dust collecting system.
• The structure of RAP is very simple, so can be rapidly add on the basic of the present equipment easily, and easy to maintenance.
• RAP adding ratio is 30%-50%.
• Multi-fuel burner, like Diesel, heavy oil, gas, coal.
• Unique accurate designed cold aggregates feeder
Technical Parameters of Recycling Asphalt Plant
| THE CONFIGURATION OF RAP80 HOT RECYCLING ASPHALT MIXING PLANT | |||
| NO | Specification | Qty | |
| 1.Cold Feed System | |||
| 1.1 | Two storage bins ,capacity 7m3/each; unload height 3.2m | 2 | |
| 1.2 | variable speed discharge belt,size:B500;each capacity:2.8~65t/h | 2 | |
| 1.3 | aggregate collecting belt: B550, max capacity:120t/h | 1 | |
| 1.4 | aggregate conveying belt :B500,max capacity:120t/h | 1 | |
| 2.Hot Recycling Drum | |||
| 2.1 | drying drum dimensions:Φ1600X6800mm,max capacity 80t/h | 1 | |
| 2.2 | Friction driving , motor 7.5kwX4, Brand: NORD | ||
| 2.3 | 50mm rock wool isolation work, covering with stainless steel | ||
| 3. Burner ( Diesel /Bunker Oil / Waste Oil Multi-Application) | |||
| 3.1 | Oil Burner, max burning capacity 850 kg/h | 1 | |
| 3.2 | diesel/bunker oil/ waste oil multi-application burner | 1 | |
| 3.3 | equipped with automatic flame failure protection devices for emergency | ||
| 3.4 | Fuel pump:pressure:3Mpa; | 1 | |
| 3.5 | Air-blower ,power 18.5kw | 1 | |
| 3.6 | Temperature Sensor :Pt100 | 1 | |
| 4.RAP material elevator | |||
| 4.1 | Drive motor, hot elevator, capacity≥ 120t/h chain bucket | 1 | |
| 4.2 | Motor power: 7.5Kw | 1 | |
| 5.Dust collecting system | |||
| 5.1 | Whole set of Air fan | 1 | |
| 5.2 | Motor power: 30kw | 1 | |
| 6.RAP material storage bin | |||
| Storage bin volume: 5m3, Weighing scale: 5T | |||
| 7.Control System | |||
| 7.1 | Electrical motor control system | 1 | |
| Breaker+short-circuit protection+overload protection+contactor | |||
| 7.2 | Aggregate temperature control system | 1 | |
| Infrared thermometer, computer auto control | |||
| 7.3 | Burner control system | 1 | |
| PLC control system , auto start/firing, safety monitoring, automatic fault protection | |||
| 7.4 | Weighing control system | 1 | |
| PLC control , color display,auto weighing,auto error compensation,formula input,printing output | |||
| 8.RAP weighing hopper | |||
| 8.1 | RAP weighing hopper, volume: 1.2m3; Discharging gate cyclinder | 1 | |
| 8.2 | Discharging chute, vibrating motor: 0.12 kw | 1 | |
Our Service
Our company
Harbin Zephyr Trading Co.,Ltd locates in the north of China, province Heilongjiang,city Harbin.This is an international trading company mainly exports large road machinery such as:asphalt mixing plant,concrete mixing plant,crushing and screening production line ,crusher and Excavator,Loader,Bulldozer,Truck Crane and Dump truck and so on...
As one of the first professional supplier of asphalt mixing plant and concrete mixing plant in China,we have always given attention to maintaining our higher level quality control and service , and we have reveived the ISO9001,CE,SGS etc certificates.Our equipment has exported to 35 countries,including:Russia,India,Bangladesh,Ghana etc.
If you have any inquiry about the concrete mixing plant or constructions machinery,please fell free to contact us,We are always warmly welcome you to come and look forward to our meeting!
FAQ
Q1:What equipment and service you can provide?
A: We can provide you solution of Asphalt Mixing Plant from working site planning to asphalts machines, transportation, installation and training, formula of asphalts, after sales services, life time technical support etc.
Q2. What is the guarantee period?
A: 12 months, with in this period we provide you technical services for free.
Q3. What is the area required for asphalt mixing plant?
A: According to different capacity, the capacity required 8-320T/H.
Q4. Can you install the asphalt mixing plant in my country?
A: Sure, we will send engineers to your country for guiding installation and training your workers to operate the machine.
